360 Rotary Waterproof Borewell Underwater Camera For Downhole Testing

Name: 360 Rotary Waterproof Borewell Underwater Camera For Downhole Testing
Brand: GOLD
Price: 1 USD

China 360 Rotary Waterproof Borewell Underwater Camera For Downhole Testing wholesale

Brand Name : GOLD

Model Number : GYGD IV

Place of Origin : Chongqing, China

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 working days

Packaging Details : Carton

Certification : CE, ISO

Product Name : Borewell Inspection Camera

Probe : 360 degree Rotary

Depth : 0-2000m

Storage : SD Card/ U Disk

Lighting : high power lighting LED

Winch : Automatic

Application : Engineering construction

Special features : Waterproof / Weatherproof

Contact Now

360 Rotary Water Well Inspection Camera Borehole Camera Price

GYGD-IV Borehole camera with cheap price. It is used for deep water well inspection. The camera with 360 degree rotary camera probe, it can get vide from both down and lateral at same time.

Deep well inspection camera is a special instrument for downhole testing. The instrument adopts the latest TV camera technology to clearly reflect the various states of the downhole to the monitor on the ground. It is equipped with video equipment to save the images, analysis of various geological conditions in the downhole.

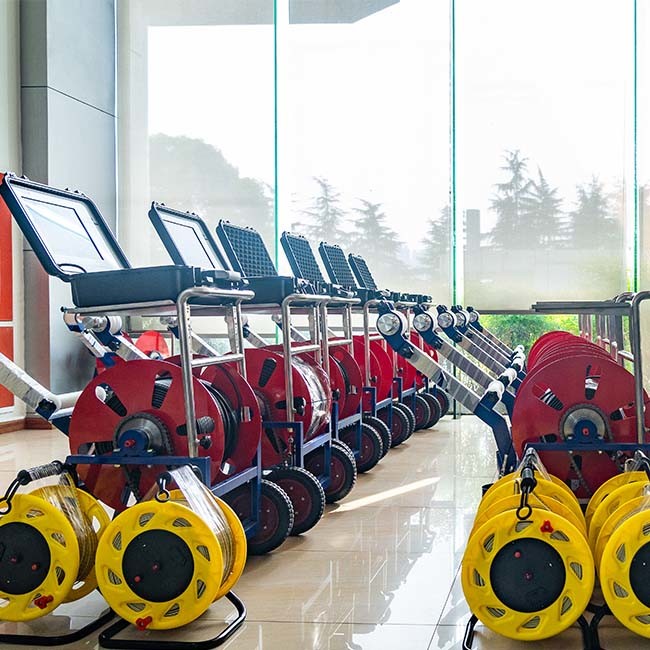

Borehole inspection camera system equipped with 6 main parts including the monitor, camera head, winchl, cable, downhole pulley, meter-counter. With great advantage such as Waterproof, high water pressure resistance, high heat-resistant.

Technical Specification

GYGD 100-2000	1000m
CCD Image Sensor	1/2.8 sony coms
Lens Specifications	Dedicated underwater camera , Underwater FOV 40°
Minimum Illumination	1.7lux or LED source
Cable Interface	Special water, oil sealing integrated cable interface
Temperature	-20°C — 70°C
Installation Interface	Fixed installation with flange
Size	Φ75×240(mm)
Dimming Mode	Automatic
Focusing Mode	Controllable
Storage	DVR500G
Storage type	DVR Storage
Cover material	316Lstainless steel,Acrylic glass(PMMA);
Grade	Military grade
Pixel	200w
Imaging format	1080*1920
S/N	>50dB
Lens multiples	20x zoom

Product Image

360 Rotary Waterproof Borewell Underwater Camera For Downhole Testing
